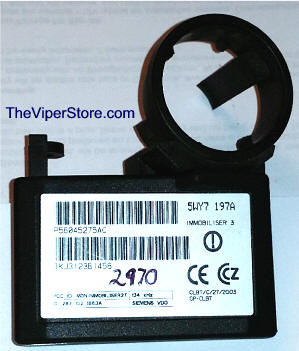

Dodge RAM SRT10 2004-2005 SKIM Module

REMOVAL
  1. Disconnect and isolate the battery negative cable.

  2. Grasp the tilt steering column knob firmly and pull it straight rearward to remove it from the tilt adjuster lever on the left side of the column.

  3. From below the steering column, remove the two outboard screws that secure the upper column shroud to the lower shroud.

  4. Using hand pressure, push inward on both sides of the upper shroud above the parting line of the lower shroud to release the snap features that secure the two shroud halves to each other.

  5. Remove the upper shroud from the lower shroud and the steering column.

  6. Remove the one center screw that secures the lower shroud to the steering column.

  7. Remove the lower shroud from the steering column.

  8. Disconnect the wire harness connector from the Sentry Key Immobilizer Module (SKIM).

  9. Remove the screw that secures the SKIM to the steering column.

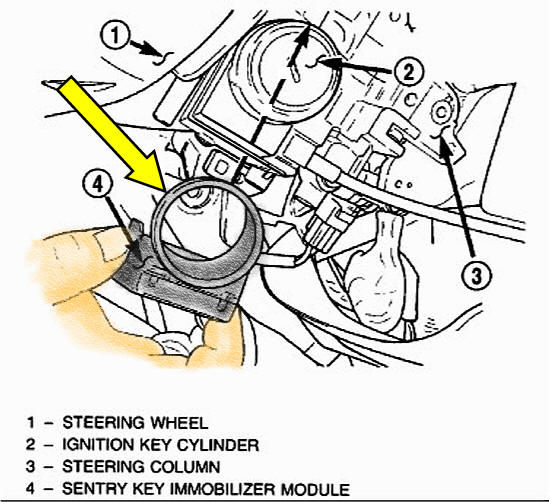

  10. Disengage the antenna ring from around the ignition lock cylinder housing and remove the SKIM.

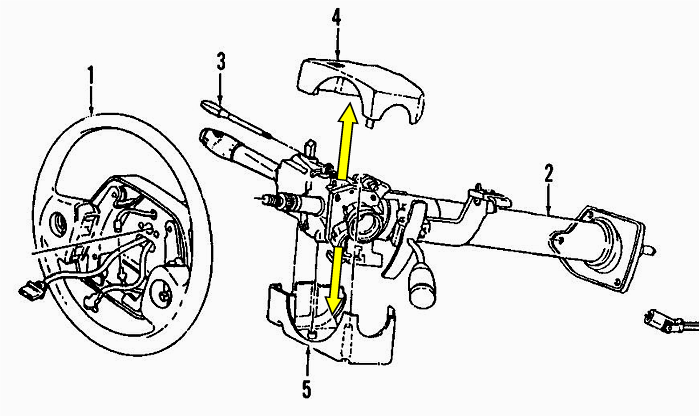

Open the upper and lower ignition steering column shroud ▲




Dodge RAM SRT10 2004-2005 SKIM Module

Installation

1.     Place the SKIM (Sentry Key Immobilizer Module) and re-engage the antenna ring around the ignition lock cylinder housing.

2.     Screw in the screw that secures the SKIM to the steering column.

3.     Reconnect the wire harness connector to the SKIM.

4.     Reinstall the lower shroud from the steering column.

5.     Screw in the one center screw that secures the lower shroud to the steering column.

6.     Reinstall the upper shroud on the lower shroud and steering column.

7.     Using hand pressure, push the upper shroud above the parting line of the lower shroud to snap the two shrouds together securely.

8.     From below the steering column, install the two outboard screws that secure the upper column shroud to the lower shroud.

9.     Grasp the tilt steering column knob firmly and push straight to reinstall it to the tilt adjuster lever on the left side of the column.

10.   Reconnect the battery negative cable.
